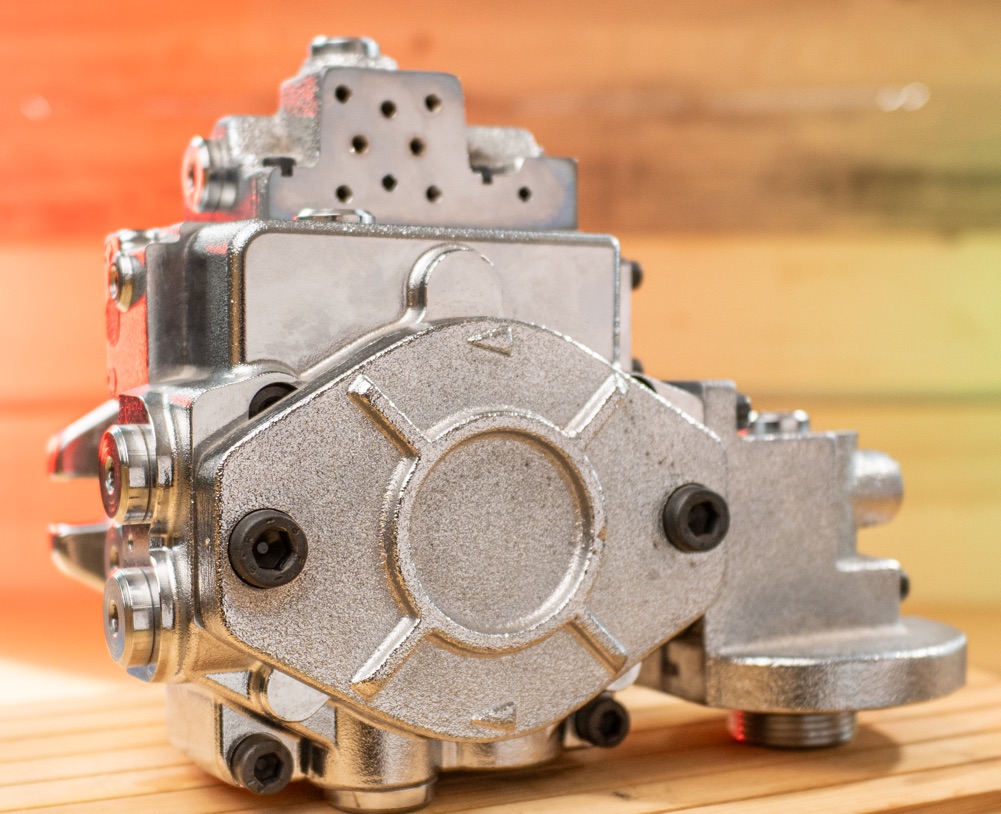

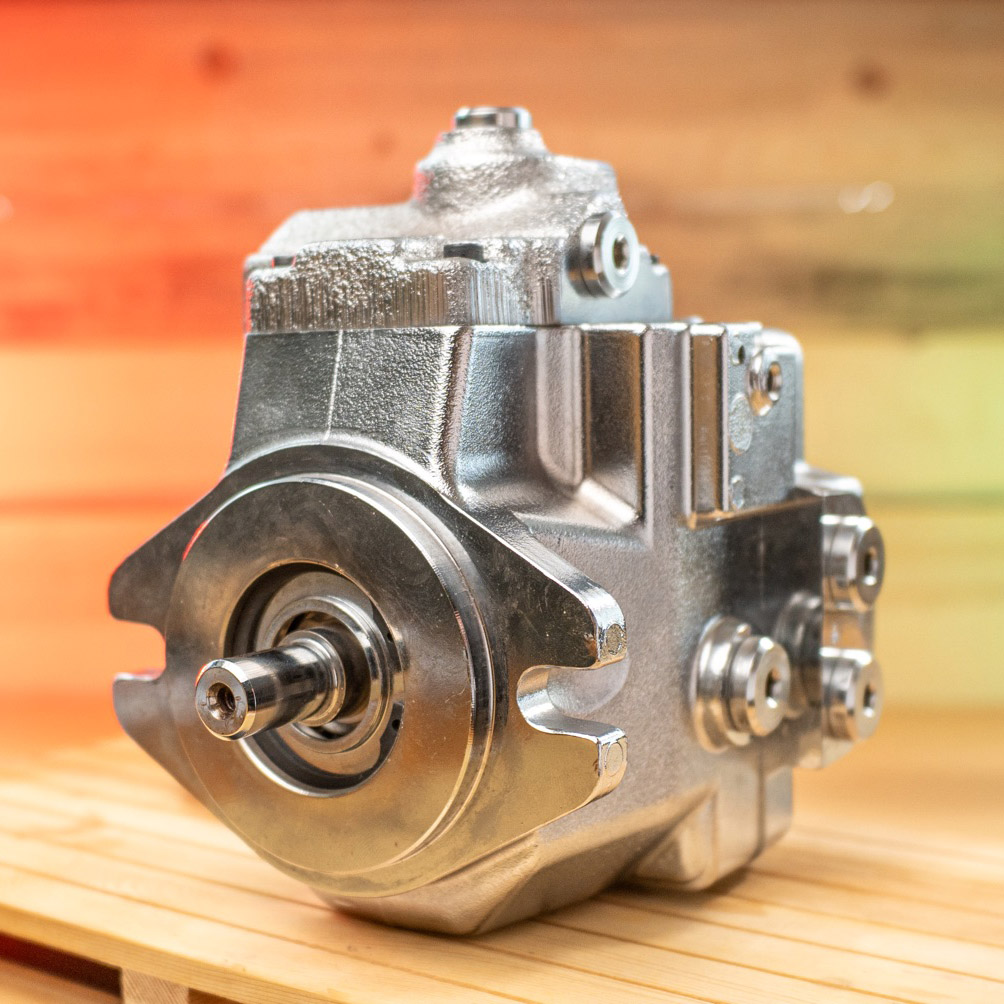

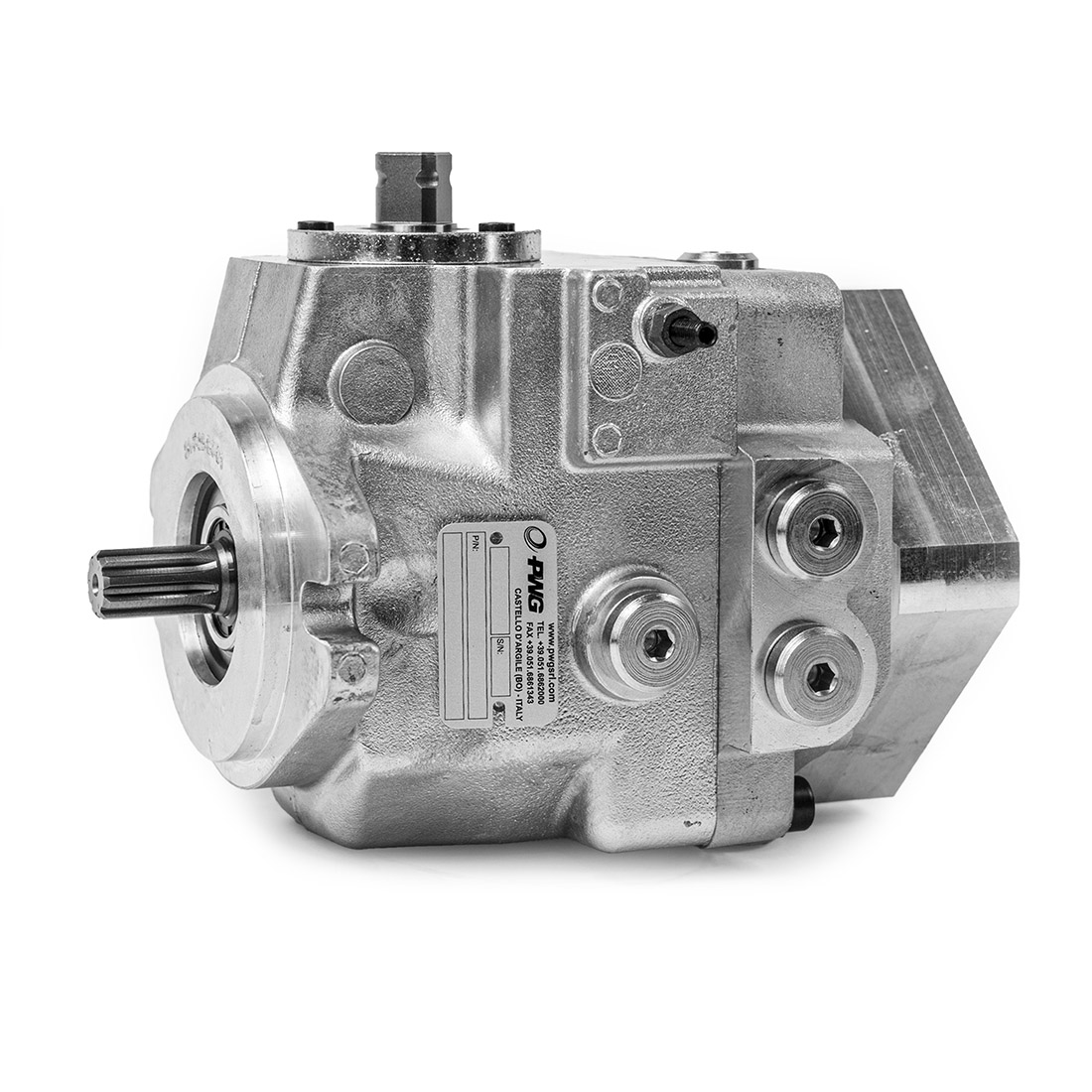

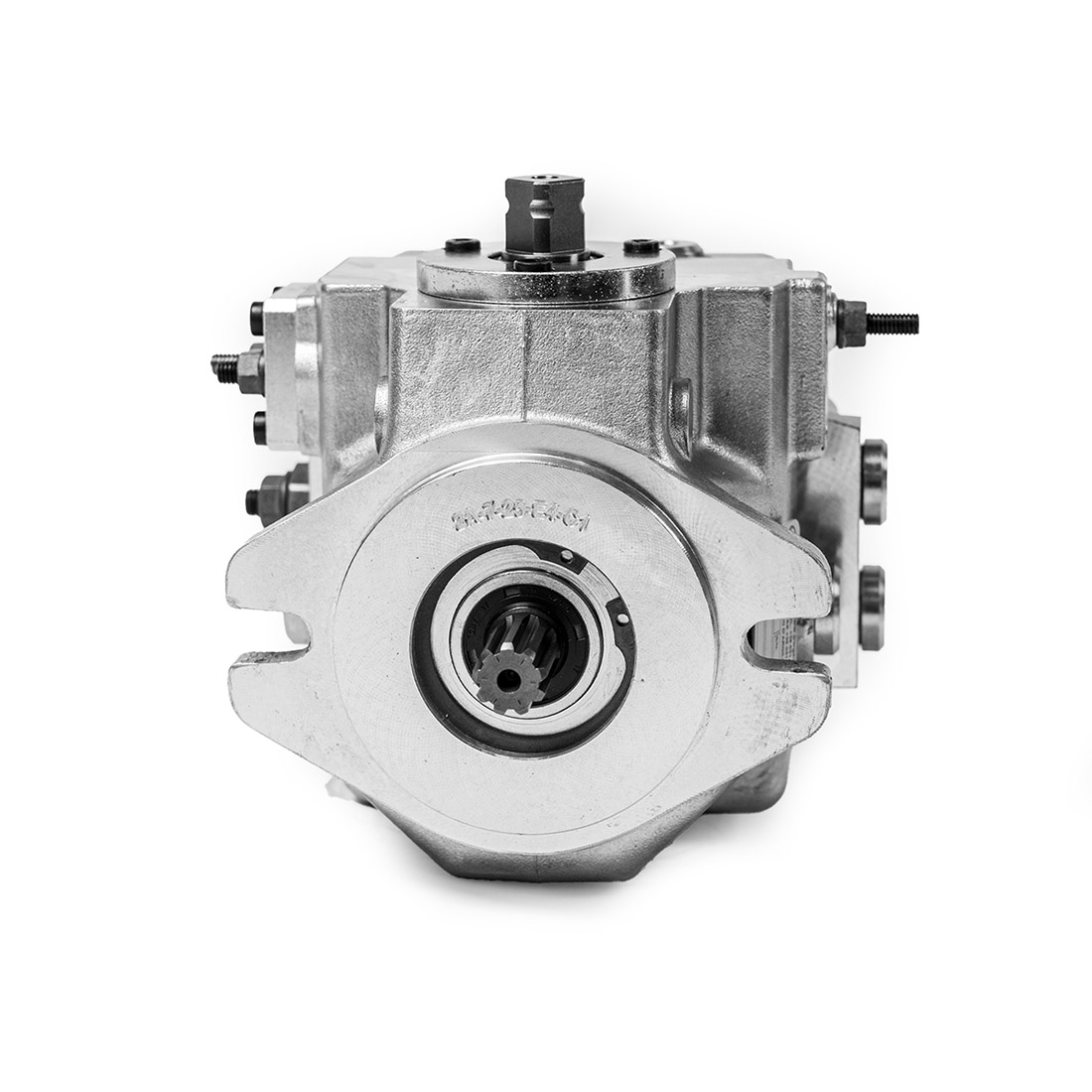

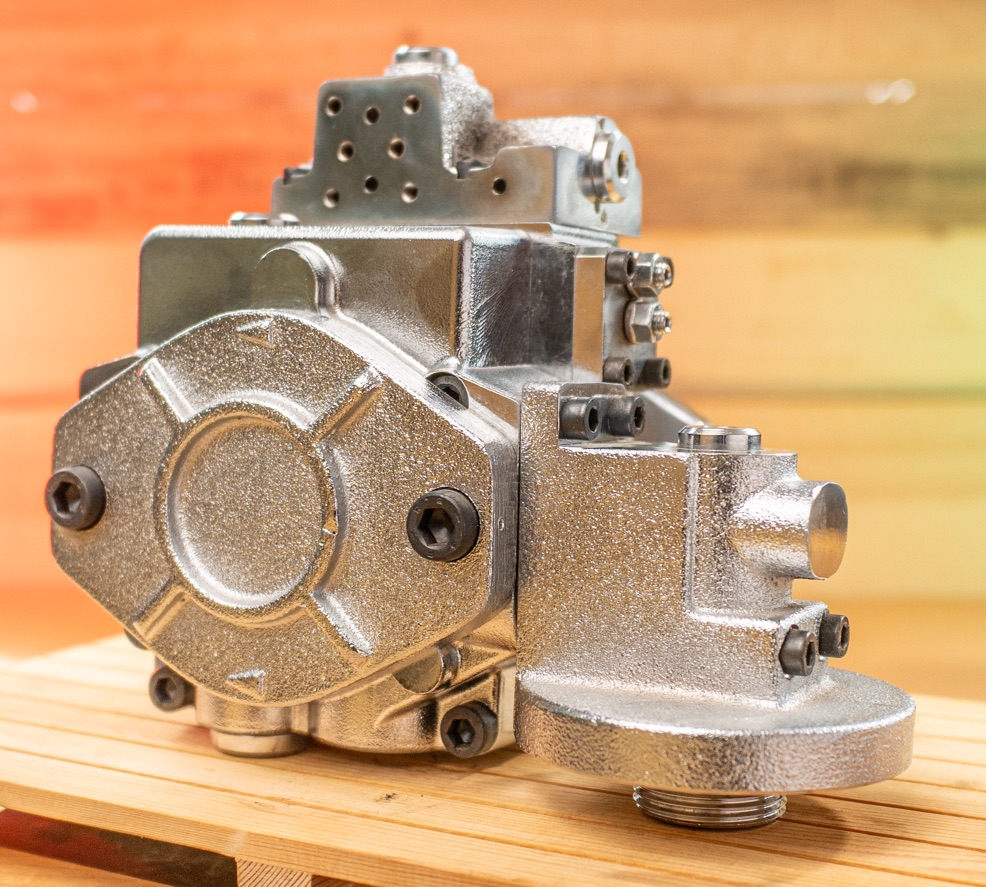

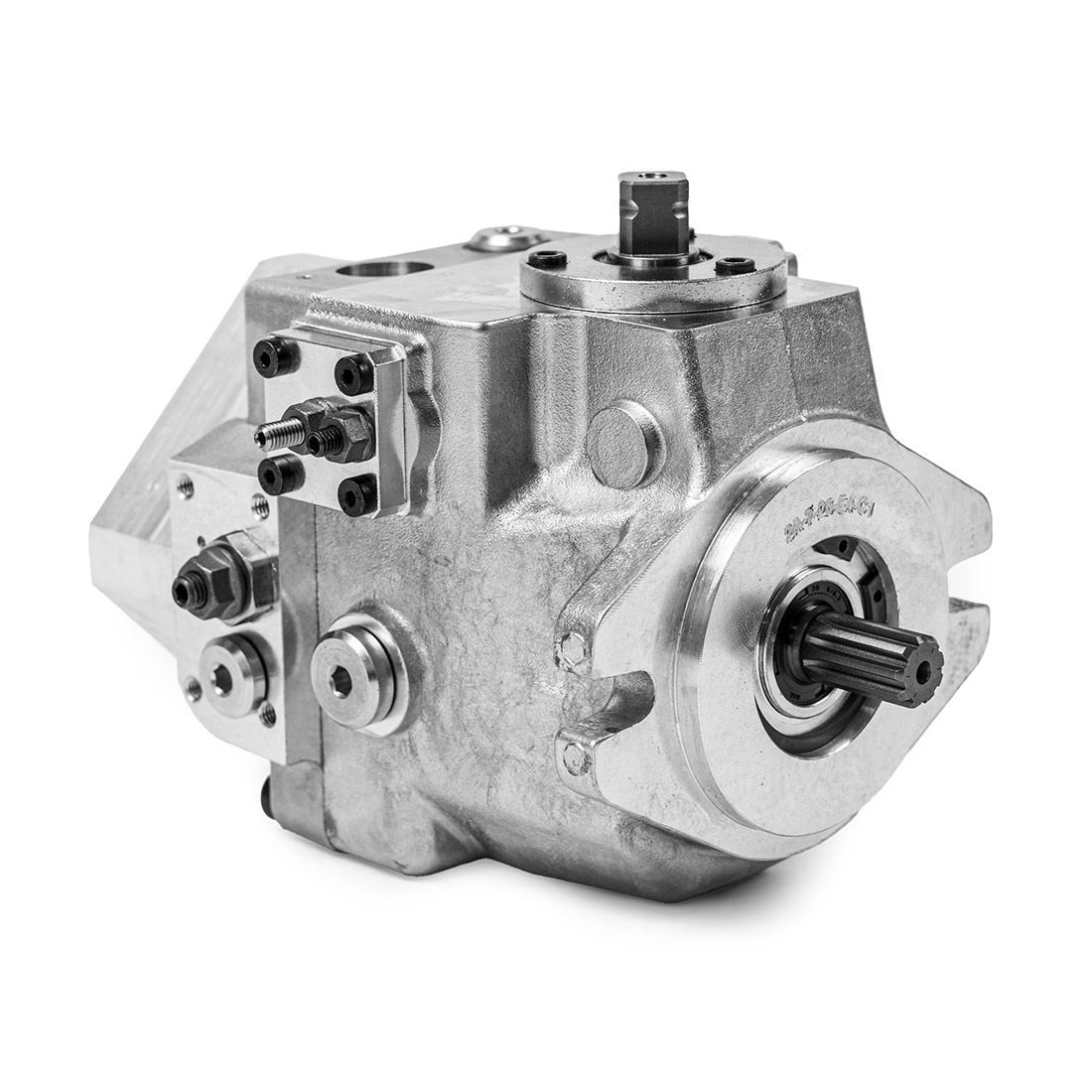

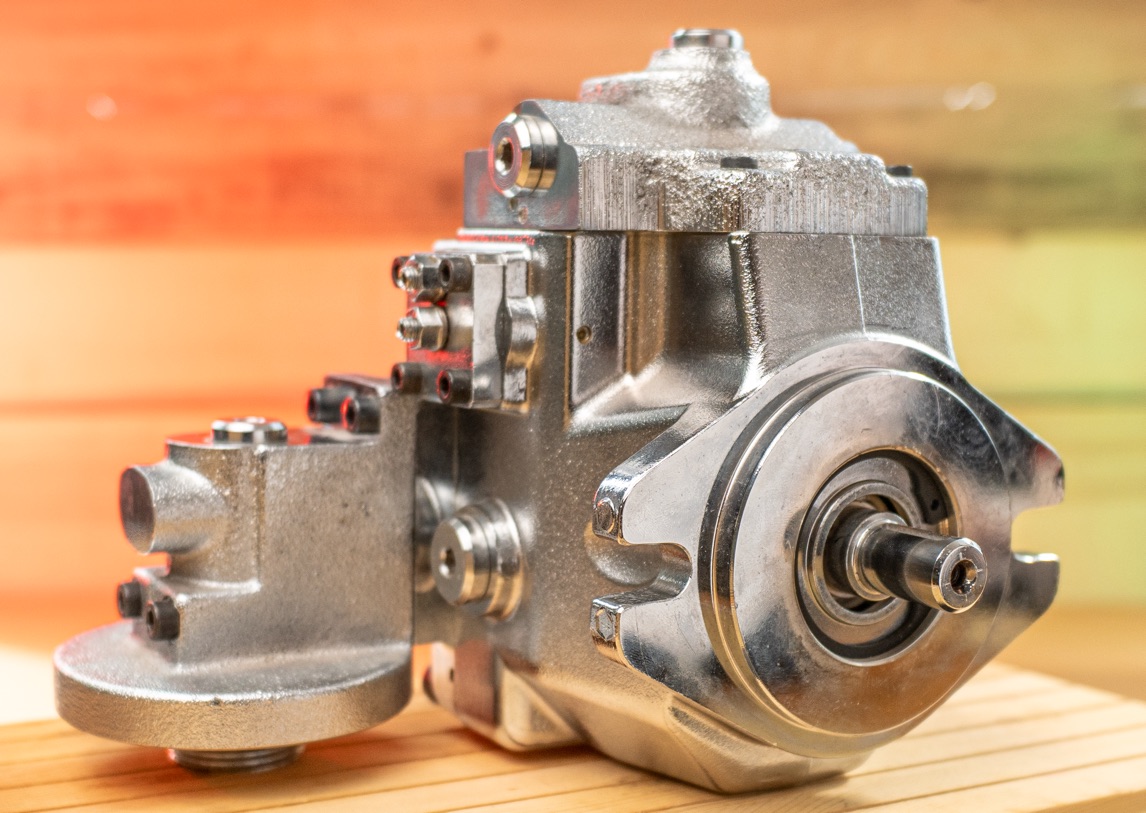

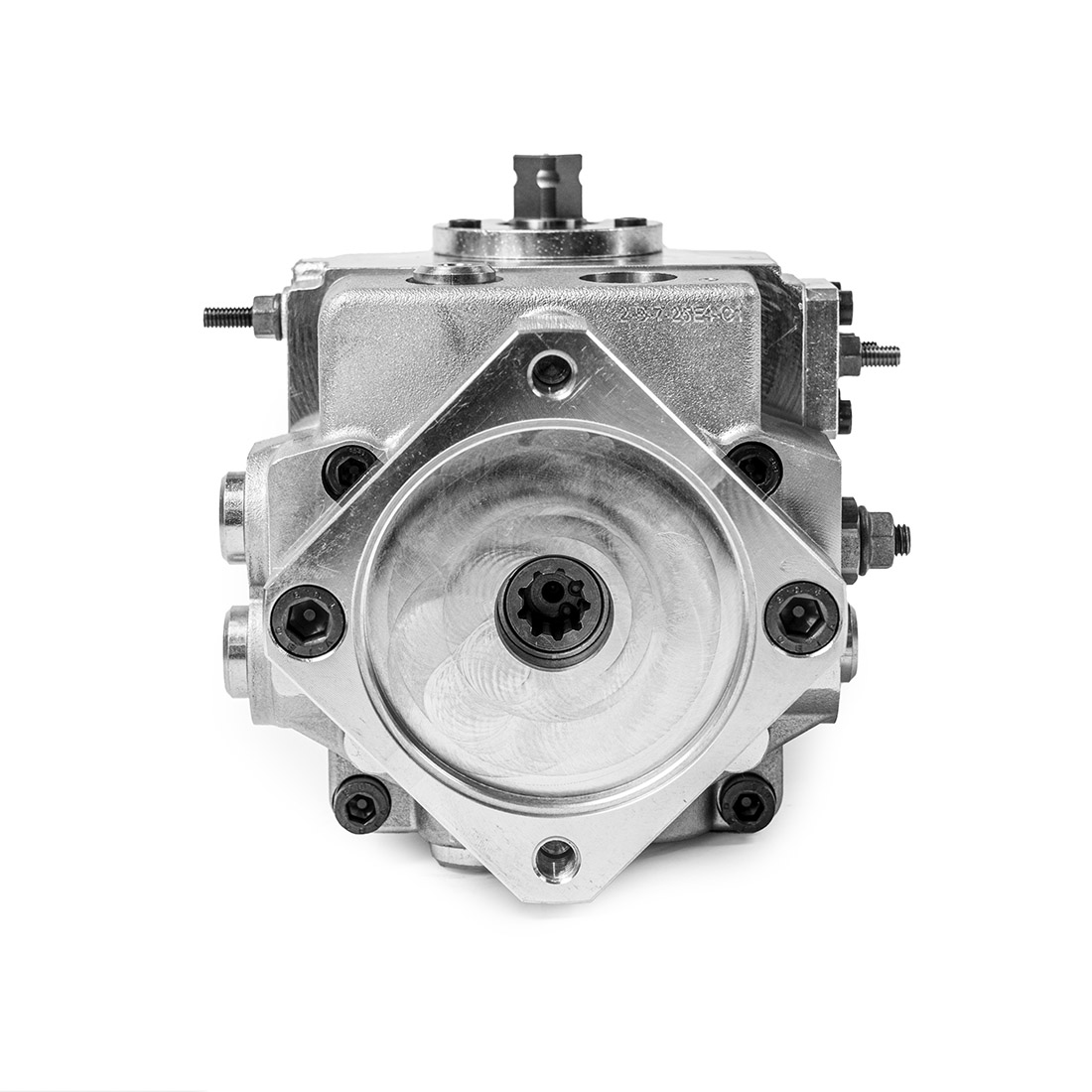

Model C1 14/18
| SERIES | C1 | |
| Displacement (1) |
cc/giro cc/rev |
14 - 18 |
| Connection flange | SAE "A" | |
| Charge pump displacement |
cc/giro cc/rev |
5.4 |
| Max speed (2) |
giri/min rpm |
3600 |
| Min speed |
giri/min rpm |
700 |
| Rated pressure |
bar (psi) |
230 (3336) |
| Peak pressure |
bar (psi) |
270 (3916) |
| Charge pressure |
bar (psi) |
10÷20 (standard 20) (145÷290) (standard 290) |
| Max case pressure |
bar (psi) |
2 (29) |
| Suction pressure |
bar (psi) |
? 0.8 (? 11.6) |
| Moment of inertia rotating parts |
kg m² (lbf ft²) |
0.0014 (0.033) |
| Weight (approx) (3) |
kg (lb) |
8 (17.64) |
The unit offers the following range of controls:
Two mounting provisions for auxiliary pumps and two additional options are available:
Peak conditions must not exceed 1% of each minute.
Avoid simultaneous operation at maximum speed and maximum pressure.
