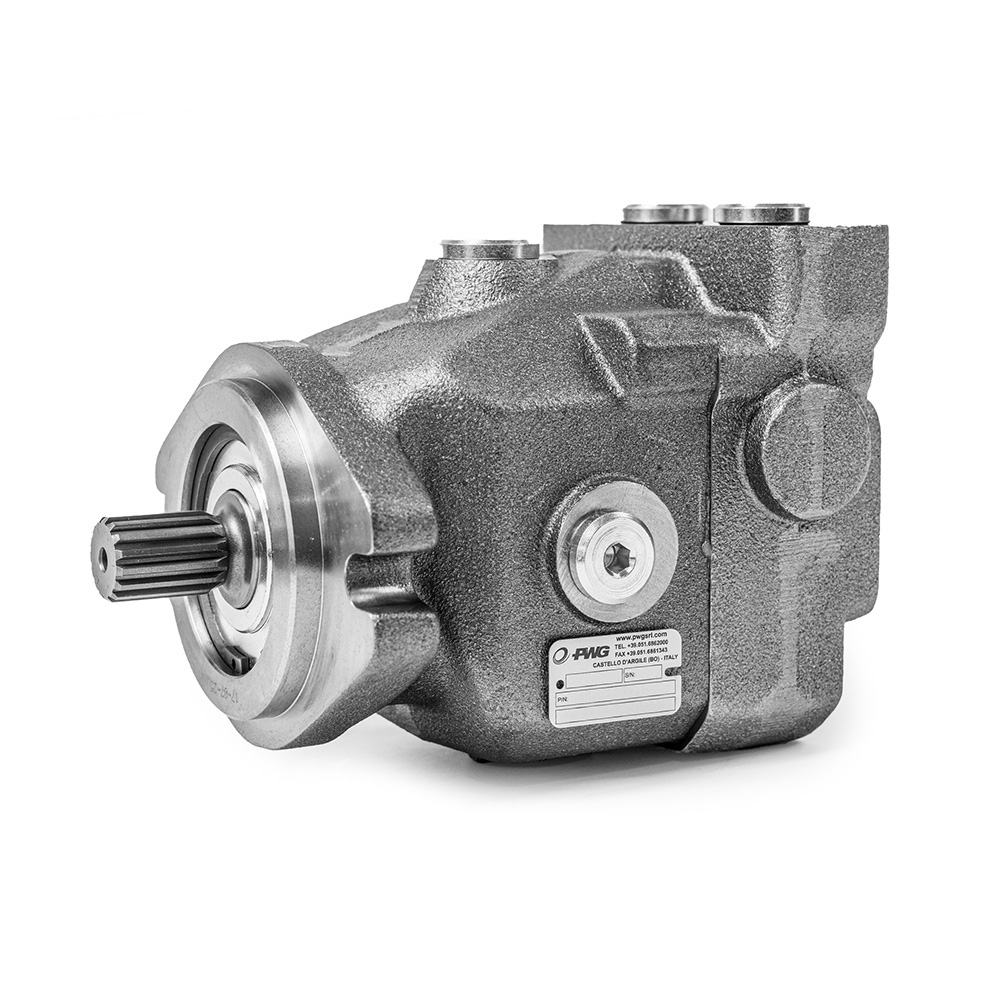

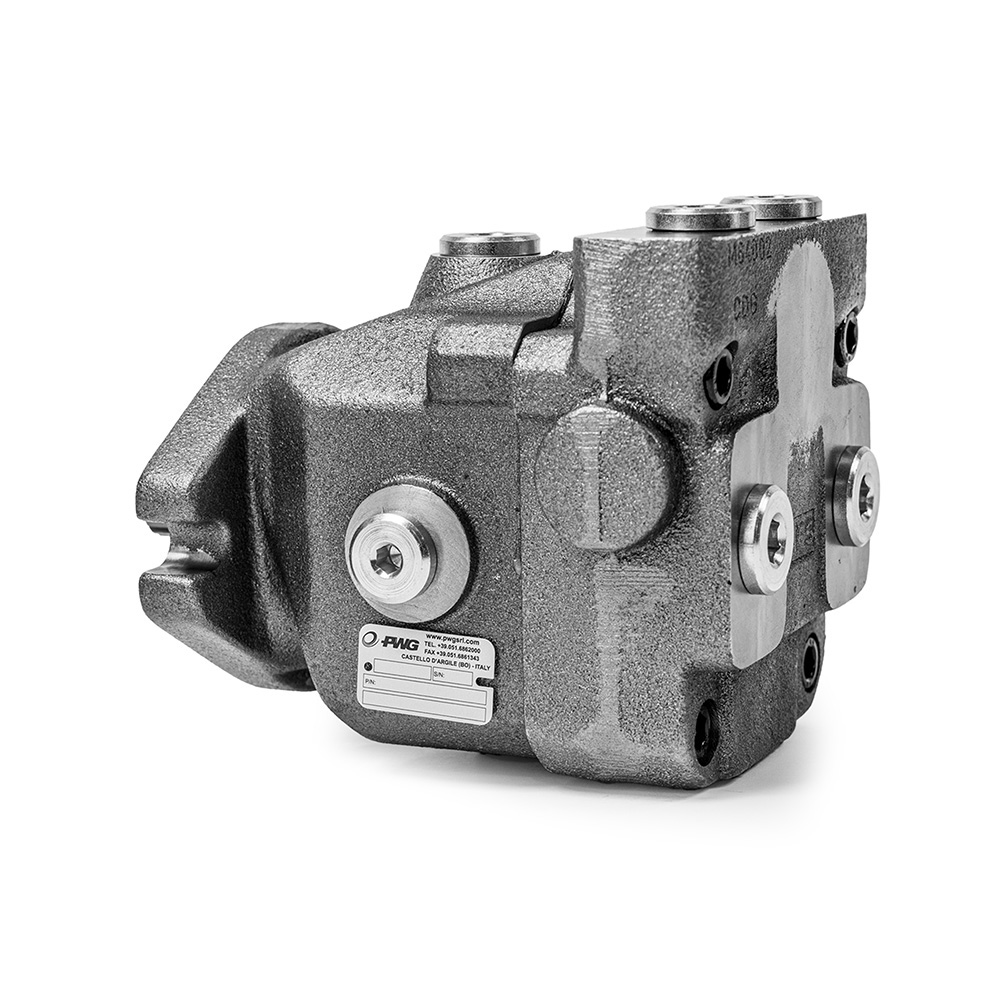

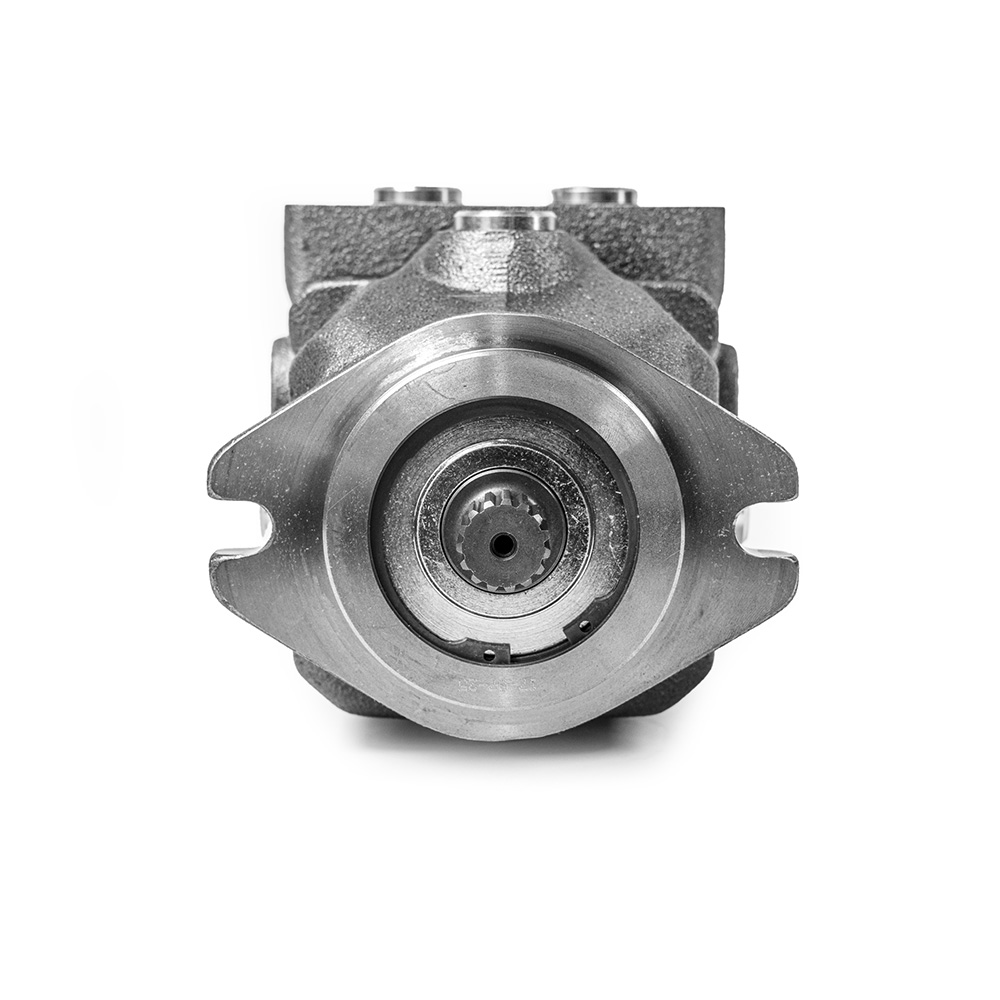

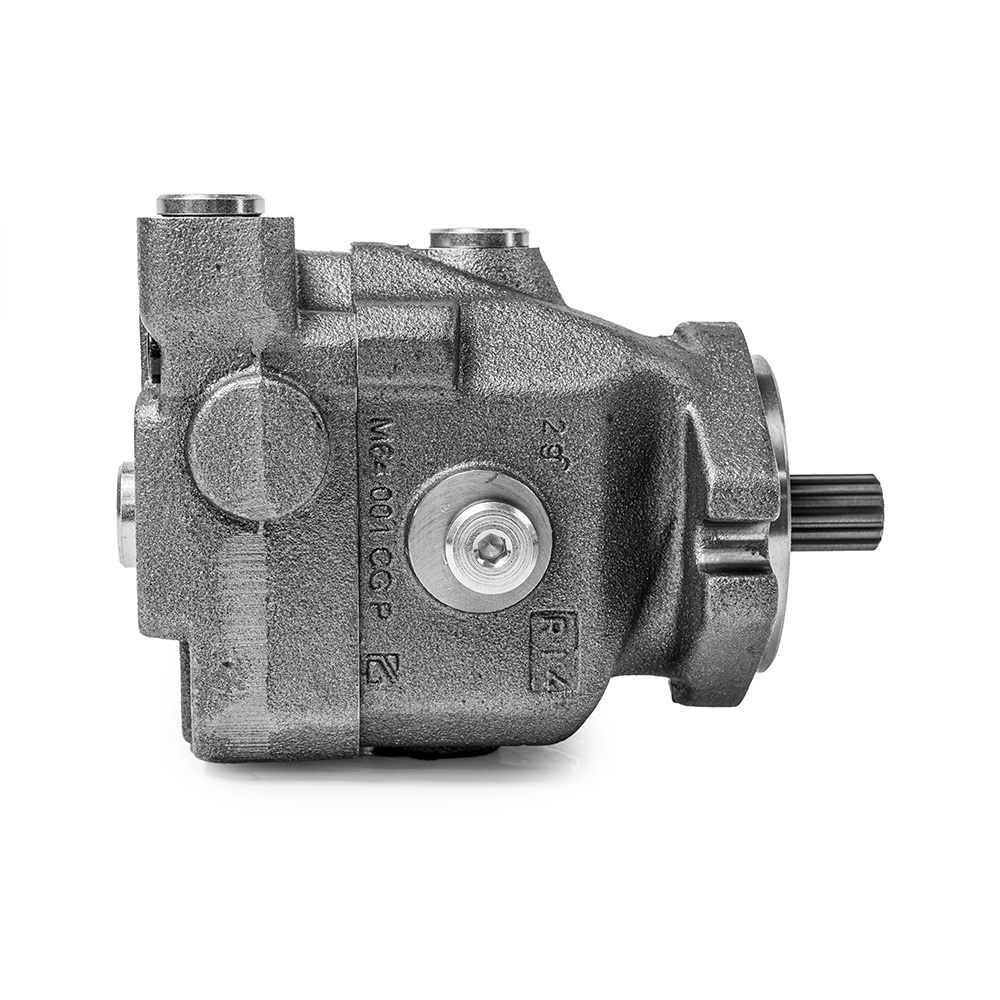

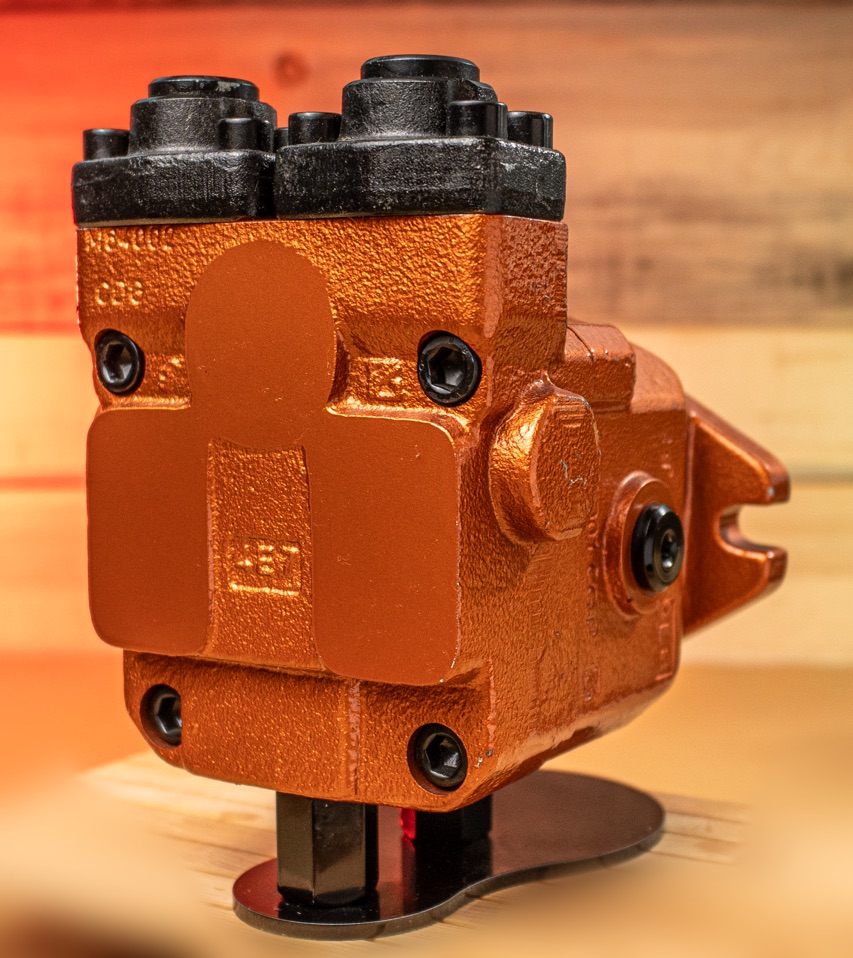

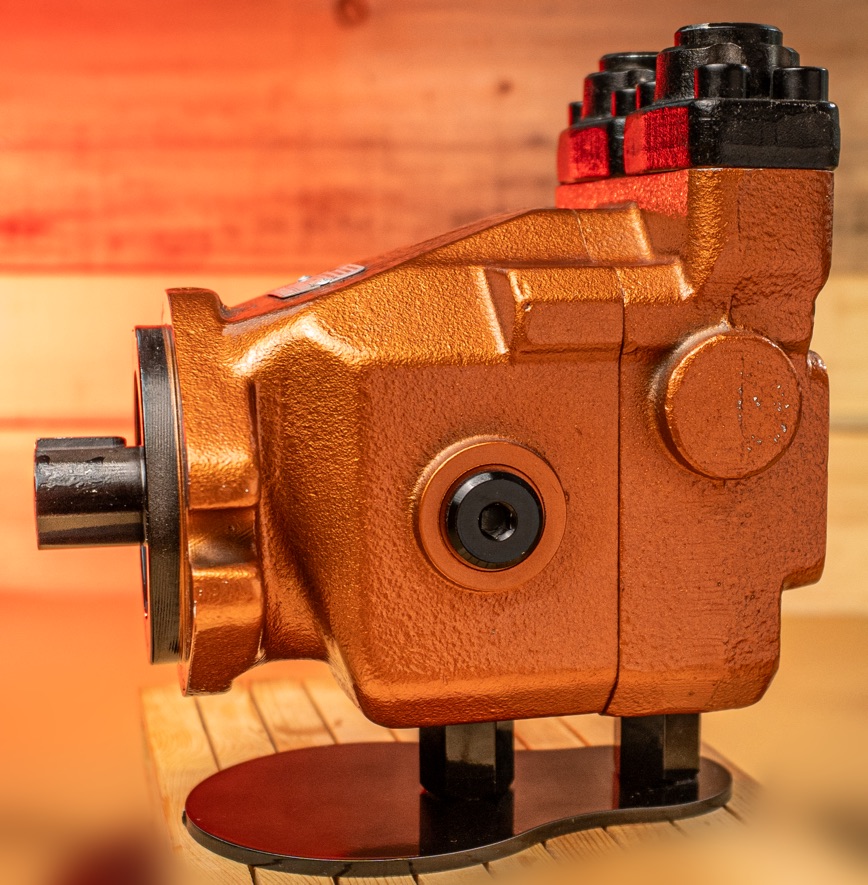

Model MF 46/64
| SERIE | MF 46-64 | |
| Displacement |
cc/giro cc/rev |
46-64 |
| Max rotation speed continuous | min-1 | 3600 |
| Max rotation speed intermittent | min-1 | 3800 |
| Min rotation speed | min-1 | 100 |
| Rated pressure |
bar (psi) |
300 (4350) |
| Peak pressure |
bar (psi) |
400 (5800) |
| Max case pressure |
bar (psi) |
1,5 (21.75) |
| Max oil continuous temperature | °C | 80 |
| ISO filtration class | ISO 18/16/13, NAS 8 | |
| Optimized oil viscosity | mm²/s | 15-35 |
| Weight | Kg | 8,5 |
| Inertial mess | N · m · s² | 60 x 10 - 59 x 10 |
The fixed-displacement axial piston motors feature a swashplatesystem and may operate in either closed or open circuit. Proper selection of materials and the use of steel cylinder blocks with inserted bushings guarantee the hight performance of the PWG S.r.l. motors, in terms of max. speed and working pressure.
The main feature of PWG S.r.l. motors include:
