Model W1 14-20
| SERIE | W1 | |
| Displacement (1) |
cc/giro cc/rev |
14 - 20 |
| Connection flange | SAE "A" | |
| Charge pump displacement |
cc/giro cc/rev |
5.4 |
| Max speed (2) |
giri/min rpm |
3600 |
| Min speed |
giri/min rpm |
700 |
| Rated pressure |
bar (psi) |
280 (4061) |
| Peak pressure |
bar (psi) |
350 (5076) |
| Charge pressure |
bar (psi) |
10÷20 (standard 20) (145÷290) (standard 290) |
| Max case pressure |
bar (psi) |
2 (29) |
| Suction pressure |
bar (psi) |
? 0.8 (? 11.6) |
| Moment of inertia rotating parts |
kg m² (lbf ft²) |
0.0014 (0.033) |
| Weight (approx) (3) |
kg (lb) |
12,5 (27.4) |
Notes:
(1) The displacements 14-20 use the same external casing.
(2) The values shown are valid for an absolute pressure (pass) of 1
bar (14.5 psi]) at the suction inlet port an when operated on mineral oil.
(3) Bypass included in the standard version

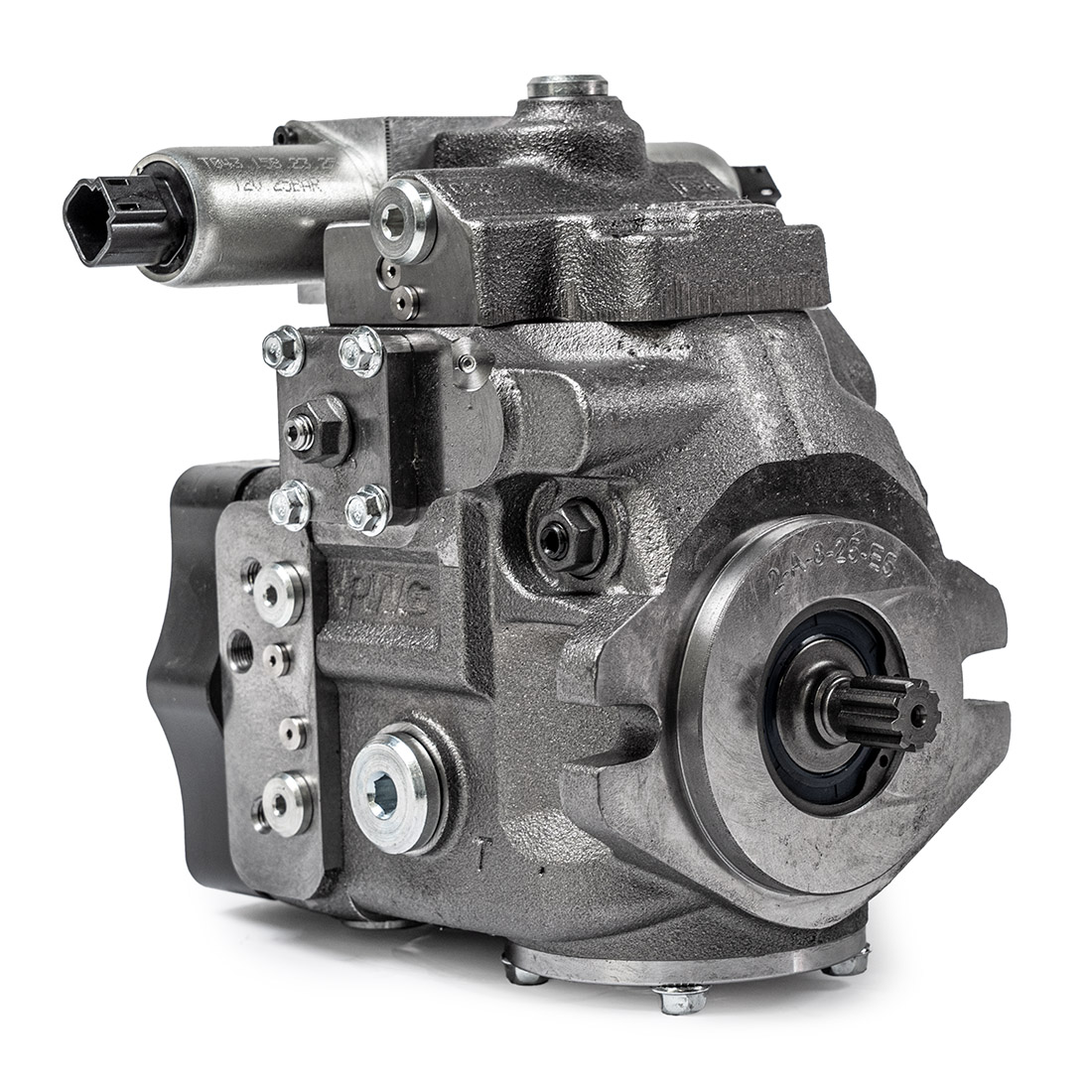

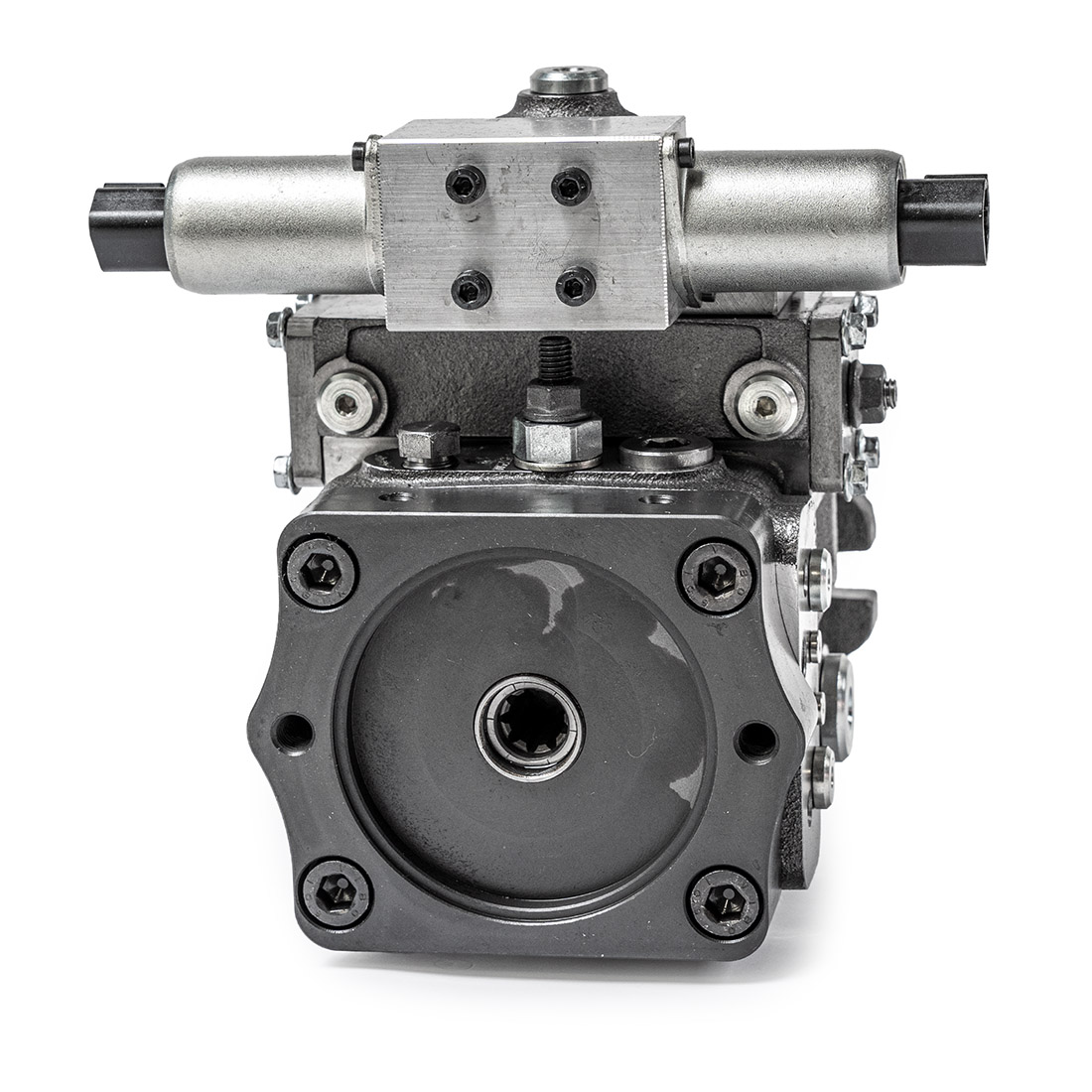

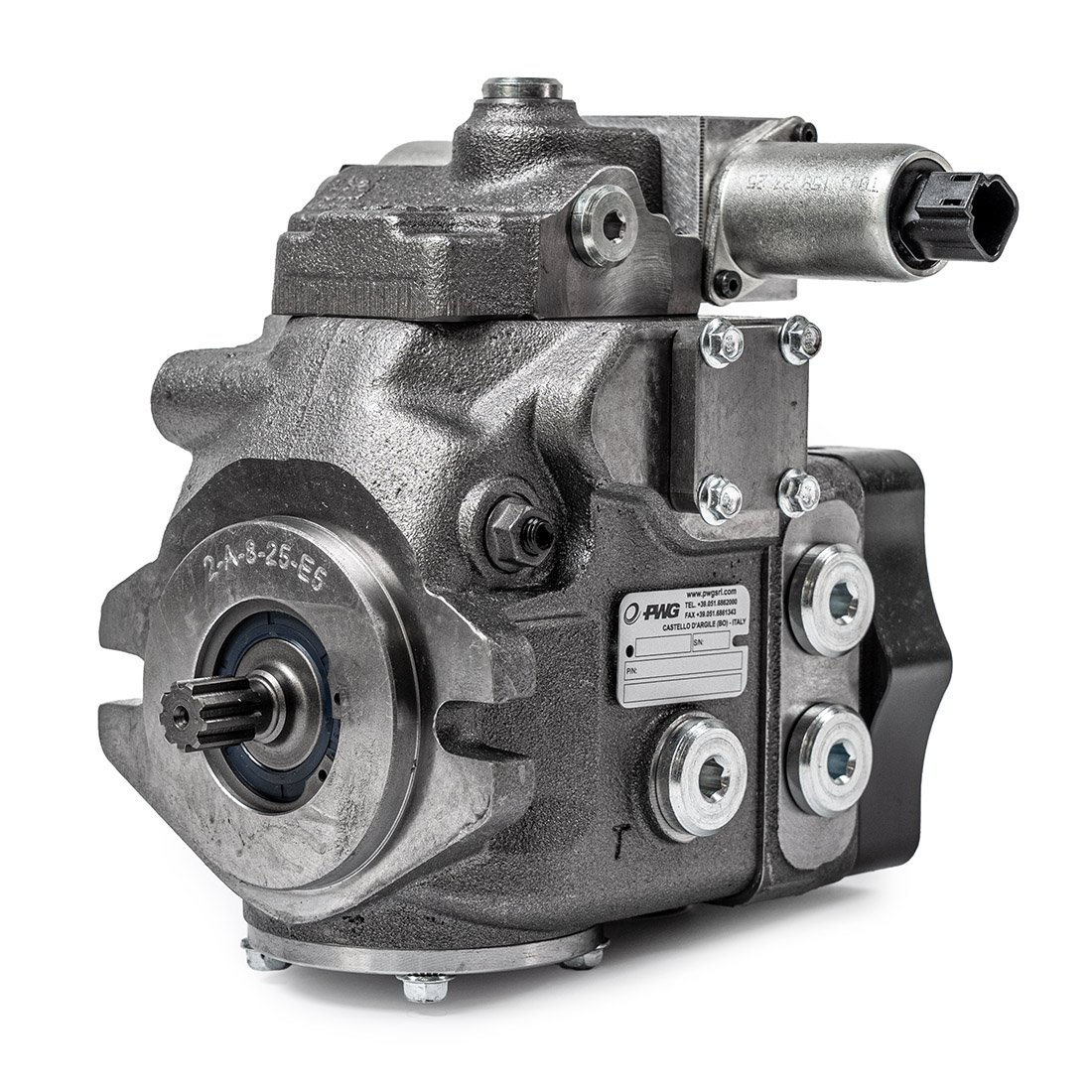

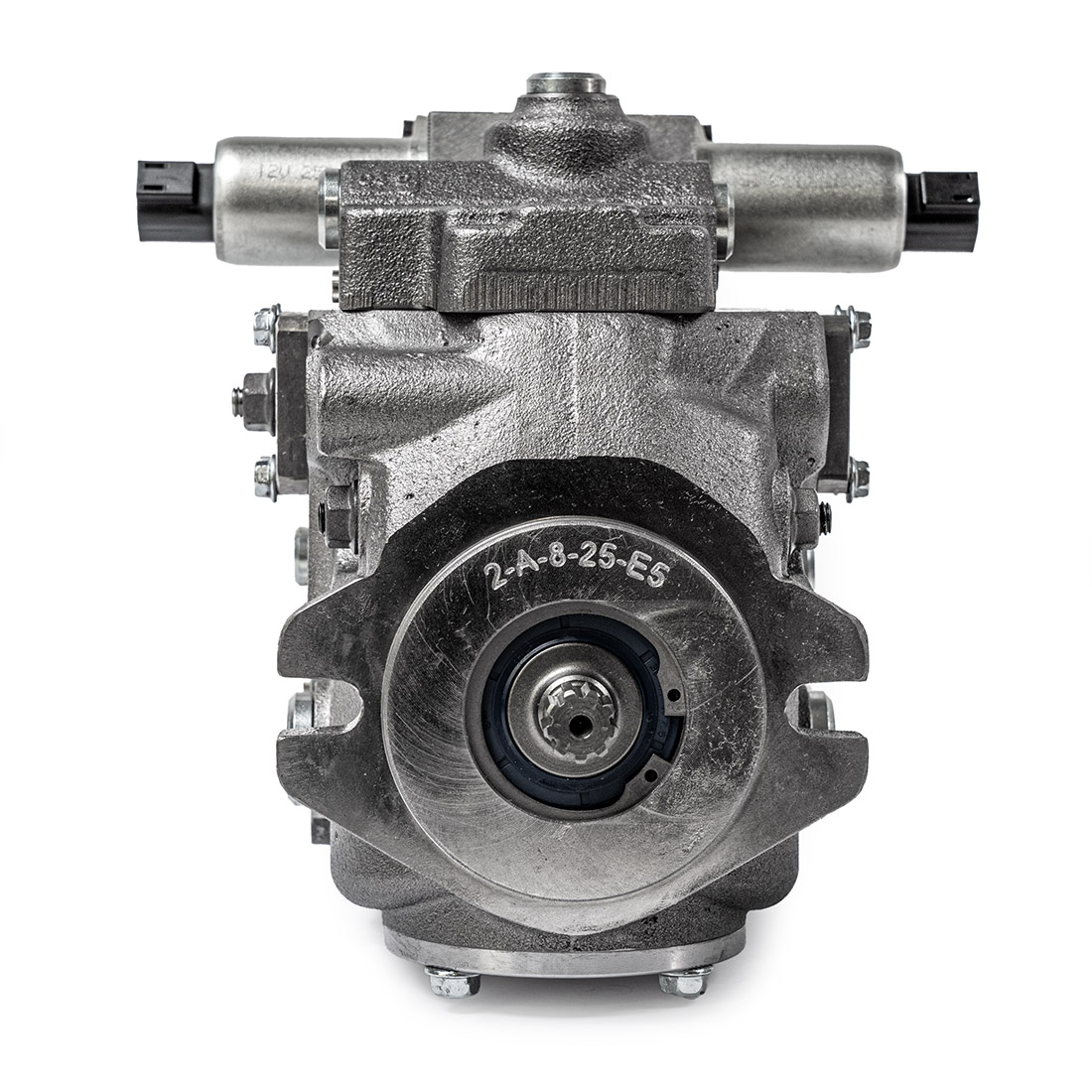

W1 14-20 series is a family of variable displacement axial piston pumps for use in closed circuits in cast iron.
The displacement is continuously variable by means of a tilting swash plate, and the oil flow direction is reversible.
The following range of controls is available:
Provisions for mounting auxiliary pumps are available:
and three accessory options:
Peak operations must not excide 1% of every minute.
A simultaneus maximum pressure and maximum speed are not recommended.
